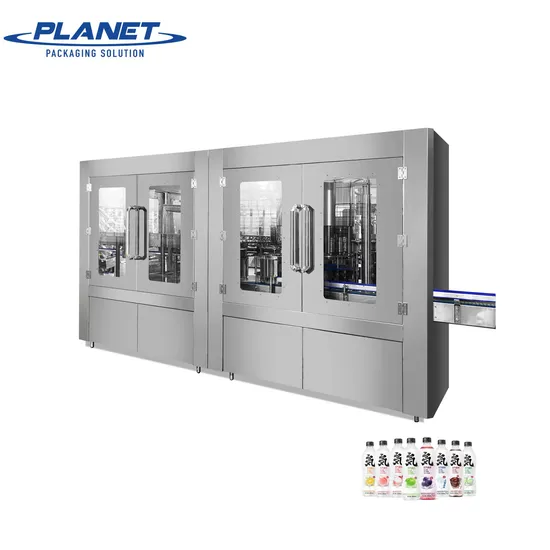

Rotary Automatic 12000~15000bph Pet Plastic Bottle Carbonated Soft Drink CSD Juice Beverage Rinsing Filling Capping Machine

Basic Info.

Model NO.	DCGN40-40-12
Feed Cylinder Structure	Single-Room Feeding
Dosing Device	Rotor
Filling Principle	Negative Pressure
Packaging Container Lifting Structure	Pneumatic Lifting
Structure	Rotary
Packaging	Bottle
Packaging Material	Plastic
Delivery Time	90days
Configuration	Europe Brand
Bottle Size	200ml-2000ml
Power	Customized
Cap Type	Ropp Cap, Normal Cap
PLC	Siemens (Germany) / Mitsubishi (Japan)
Weight	3t
Dimensions	2500*2000*2000
Valve	Beer Valve, Double CO2 Replacement
Model	Dcgn 40-40-15
Control System	PLC+ Remote Operation System
Feature	High Efficiency
Certification	CE, ISO, SGS
Capacity	2000bph-24000bph
Transport Package	Wooden Case
Specification	Stainless Steel 304/316
Trademark	HY-FILLING
Origin	China
HS Code	8422301090
Production Capacity	30sets/Year

Product Description

Product Description
The machine is combined with rinsing, filling and capping, which special designed for PET bottled carbonated soft drink. It is stable characteristic, advanced technology, nice appearance and complete function.
Detailed Images

	Rinsing part It is rotary type, mainly sued for rinsing new bottles send the bottles to the filling machine. PET bottle enters the machine by bottle distribute wheel star, and turned with mouth down by clip and turn mechanism, after sterile water rinsing and drying, automatic turn with mouth up, and send to filling machine by bottle-outlet wheel star. The main structure with rinsing water and outer shield are all stainless steel material; open type gear drive.
Filling part We introduce into Germany technology for the filling machine, and design & manufacture by ourselves with isobar filling principle. Filling valve adopts constant pressure mechanism valve, filling fast and high accuracy of filling liquid level. It is adopted double guide rod structure.
	Capping part The capping rotates through reduction box drive rotational wheel, which make the cap leave the hopper with the function of centrifugal force. There is a separation device for right cap and reverse cap at the entrance, when the reverse cap passes, the cap automatically fall into and return to pipeline, and blow the reverse cap automatically to hopper through wind power.

Technical parameter:

Rated Capacity	2000-36000BPH (500ml)
Filling Method	Isotonic Filling
Applicable Bottle	PET Bottle, Diameter 50-97mm, Height 150-320mm
Applicable Cap	Normal Standard Cap
Air Supply Pressure	0.7 MPa
Rinsing Water Pressure	0.2~0.25 MPa
Rated Voltage	380V

We provide the Complete turnkey project for beverage production line includes:

1. Water Treatment System (Water Filtration)
2. Preparation/Processing System (Mixing System for Drinks like CSD, juice etc)
3. Injection molding machines (for pet preform)
4. Bottle Blowing Machine (Making plastic bottles)
5. Air Conveyor (Transport empty bottles)
6. Filling Machine (Filling product into bottles)
7. Cap elevator (Transport cap)
8. Blow dryer (Blow away water drops)
9. Flat Convey (Transport bottle)
10. Code Printer (Printing the date on the filled bottle)
11. Labeling Machine (Labeling for filled bottle)
12. Bottle Packing Machine (package the filled bottles)
13. Palletizing Machine (to palletize the cartons)

Turnkey solution for beverage water dairy drink filling production line

	1.Water treatmentWater treatment is equipped for pure water, mineral water, and water used in beverage drink. It contains RO, natrium filter, ultra filter, activated carbon filter, ion exchanger, ozone processor etc.
2.Bottle Blowing Machine Divided into: semi-automatic bottle blowing and full automatic bottle blowing machine.Suitable for: PET bottle.Bottle size: 500ml-2L
	3. Filling Machine The machine is combined with rinsing, filling and capping, which special designed for PET bottled. It is stable characteristic, advanced technology, nice appearance and complete function.
4.Filled Bottle Conveyor SystemConveying belt is designed by module, component can be interchanged easily, structure is compact, noise is little, easy assembling and maintaining, have flexibility to combine the bottle type according to the different capacity.
	5.Packaging System Customized: Sleeving Label Machine, Film Shrink-wrapping Machine, Palletizing machine, Date code printer etc.
